uPVC Multi-Fold Doors - Suffolk & Norfolk

We serve customers throughout Suffolk & Norfolk. Call us today.

The "Imagine" uPVC Multi-Fold Door are next generation in uPVC Multi-Folding and Bi-Folding Doors.

Bi and multi uPVC folding Doors

About Our Multi-Fold Doors

The "Imagine" is a new concept in uPVC Multi-Fold, combining the rigidity of aluminium and the natural aesthetics and beauty of traditional timber.

Its attention to detail in design, security and thermal performance all combine to make it a truly innovative way to transform any room.



Imagine uPVC Doors

All door leaves fold flat to the inside or the outside of the opening providing maximum clear opening space.

It's easy to see why property owners are impressed by the traditional looks of uPVC Imagine Multi-Fold doors.

Highly functional and innovative doors that have a transforming effect on their environment


Multi-folding doors

Maximum Clear Openings

This new concept in uPVC Bi Folding Doors combines the rigidity of aluminium with the natural aesthetics and beauty of traditional wood. Design, security, and thermal efficiency combine to make our multi-fold doors a truly innovative way to transform any room.

The door leaf folds flat to the inside or outside of the opening, so that it leaves the maximum amount of clear opening space.

'Choices' uPVC Imagine Bi Folding Doors are designed with traditional looks that are sure to impress.

It is the ideal addition to any home for dividing rooms, opening up onto a terrace or conservatory - or for just enjoying the panoramic view.



'Choices' uPVC Imagine Bi Folding Doors

These doors are designed with traditional looks that are sure to impress.

It is the ideal addition to any home for dividing rooms, opening up onto a terrace or conservatory - or for just enjoying the panoramic view.

Thanks to the unique design, double doors do not need a floating mullion, and flush-fitting sashes ensure a better appearance and slimmer sightlines.

All ‘Imagine’ doors are available with midrail and 20mm astragal bar options, as open in or open out with full glass or half glazed mid rail designs.

Standard Specification

  • Available opening inwards or outwards
  • 6 chambered stepped 70mm outer frame
  • 5 chambered 80mm sightline sash
  • 28mm Planitherm toughened sealed units with Argon gas and black warm edge spacer
  • Sculptured beads with black gaskets
  • Hinges and D handle supplied in black/white
  • Magnets when required will match hinge colour
  • Fully welded outer frame (mechanical jointed option available)

Features and Benefits

  • Clean Contemporary look with slim sight-lines
  • Outstanding thermal performance
  • Available triple glazed
  • Overall door ‘U’ value 1.35 double glazed
  • Overall door ‘U’ value 0.99 triple glazed
  • Fully adjustable slimline hinges
  • Hidden track
  • Choice of foil options
  • Maximum sash width 1000mm
  • Maximum door height 2400mm
  • Minimum overall door height 1950mm
  • Suited furniture
  • Cranked lever/lever handle to allow tight stacking
  • Premium quality magnets
  • Available in 16 different opening configurations
  • DDA compliant where required
  • Fully welded or mechanical outer frame
  • Pas 24 and Secure by Design achievable
  • ERA 5 star guarantee
  • Choice of 3 threshold options
Cranked Lever/Lever Handle
Cranked Lever/Lever Handle
(available in White, Black, Gold or Chrome)
Internal Intermediate Handle
Internal Intermediate Handle
(available in White, Black, Gold or Chrome)

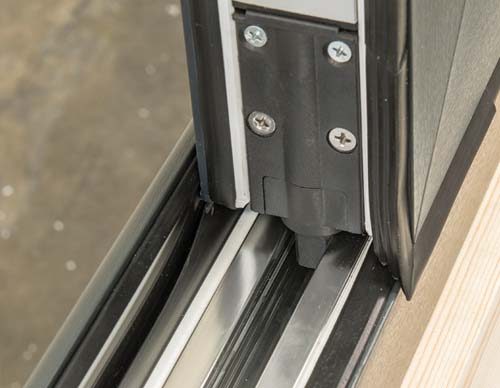

Hidden Track
Hidden Track
Fully Adjustable Hinges
Fully Adjustable Hinges
(available in White or Black)
Cranked
Cranked
(Main door handle) Imagine multi-fold intermediate handle intermediate handles available in black, white, gold or chrome
Intermediate
Intermediate

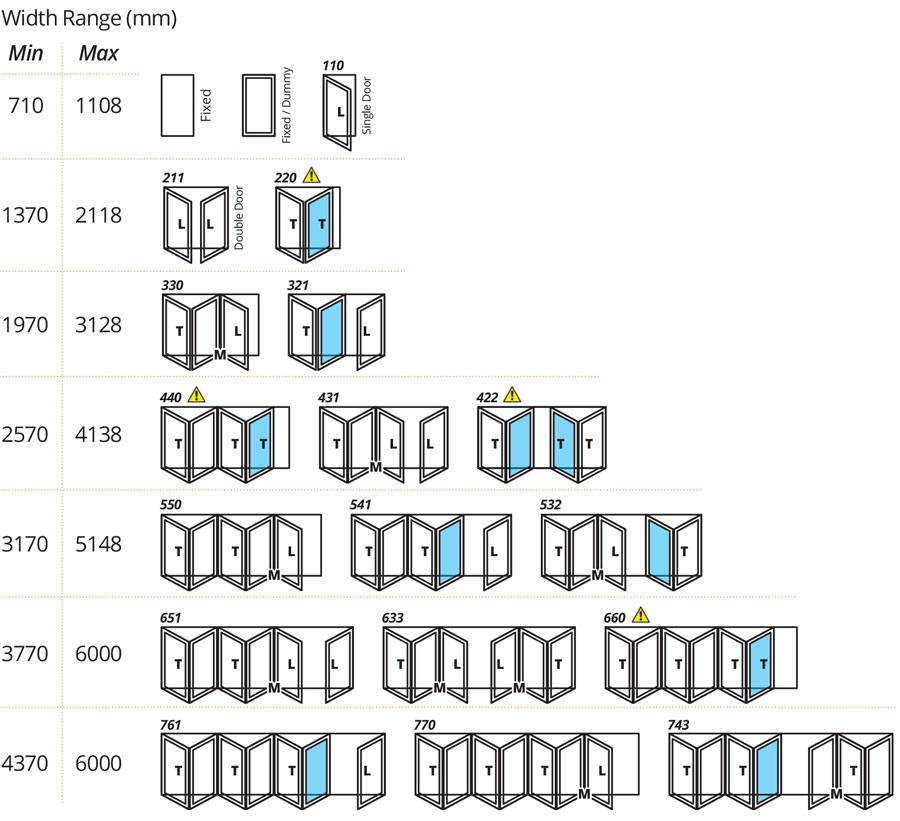

Configurations

Configurations

Min/Max frame heights

  • Std frame 1810/2450mm
  • Std frame/Low Ali threshold 1797/2437mm
  • Std frame/Room divider 1782/2422mm

Min/Max Sash Widths

  • Sashes 600/1000mm

Key:

  • keyThese doors do not have a single prime door.
    Two leaves need to be operated together - No external handle available
  • keyIndicates cranked lever/lever handle with euro cylinder
  • keyIndicates magnet
  • key Sashes are manufactured 60mm wider than adjoining sashes to allow them to operate correctly
    Two leaves need to be operated together - No external handle available
  • key Indicates internal intermediate handle

Color Choices

Both Sides or on Smooth White

Smooth White
Smooth White
Golden Oak
Golden Oak
Rosewood
Rosewood

Both Sides Only

White Ash
White Ash

Both Sides or On Smooth White (on white base)

Cream
Cream
Anthracite Grey (Grained)
Anthracite Grey

On Smooth White Only

Painswick Grey
Painswick Grey
Pebble Grey
Pebble Grey
Anthracite Grey
(Smooth Textured)
Pebble Grey
Slate Grey
Slate Grey
SPECTRAL Anthracite Grey (Smooth)
Pebble Grey
Chartwell Green
Chartwell Green
Irish Oak
Irish Oak
Beck Brown
Beck Brown
Anthracite Grey
Silver Grey

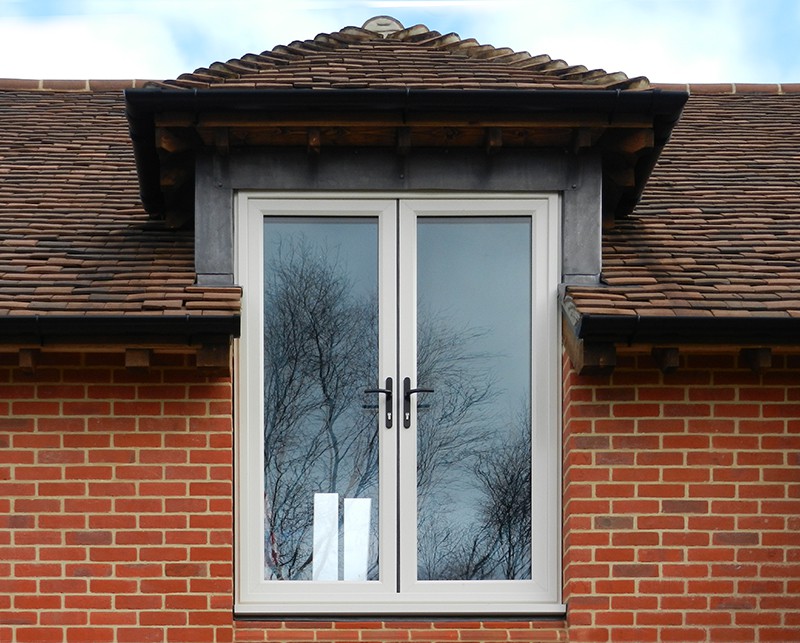

Imagine Single and Double Doors

Imagine Single and Double Doors

Open-in and open-out flush fitting doors in a traditional style. The unique design means there is no requirement for a floating mullion on double doors and with flush fitting sashes on open out doors, improved appearance and slimmer sightlines are assured.

All ‘Imagine’ doors are available with midrail and 20mm astragal bar options, as open in or open out with full glass or half glazed mid rail designs.

Kubu Smart Sensor

Choices range of standard UPVC doors, Solidors and Residors will now be Kubu enabled with smart sensor compatibility as standard.



Kubu Smart Sensor
